Saker Concealed Hinge Jig Z86

FEATURES

• Easy To Use: Install a 35mm hole opener, adjust the drilling depth to 0-14mm normally, and then lock the limit ring. After the hold was made you can install the Hinge Side Plate and finally get a perfect door or side panels.

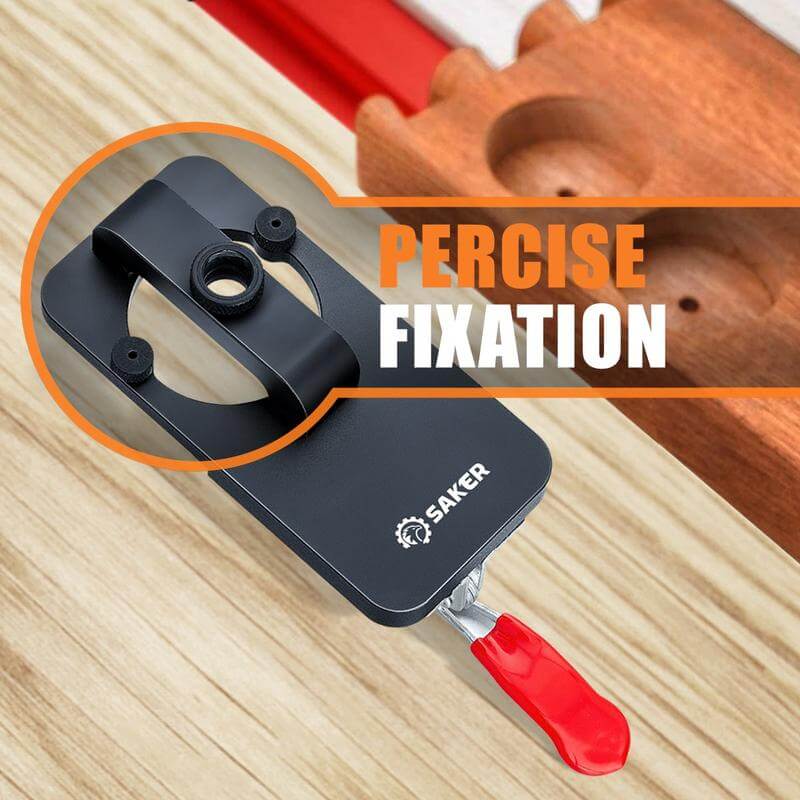

• Durable Material: Made of aluminium alloy, precise manufacturing, accurate positioning and convenient operation, long-lasting.
• Easy To Adjust: The drill guide can be adjusted to tension wood boards of different thicknesses. For furniture factories and woodworking enthusiasts, this is a great tool kit.

INSTALLATION METHOD

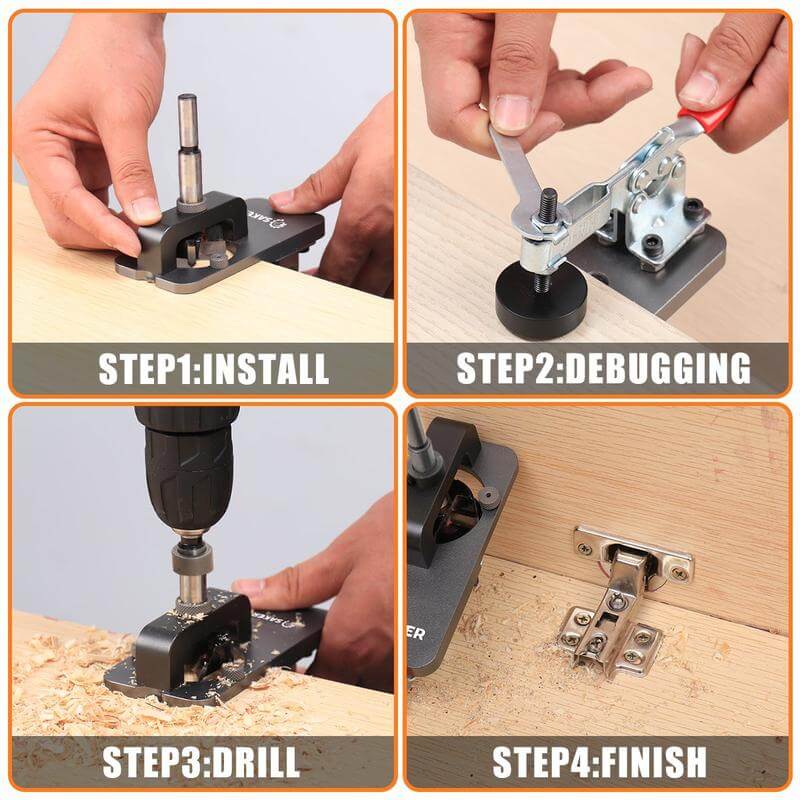

1. Install a 35mm hole opener, adjust the drilling depth, which is normally 0-14mm, and then lock the limit ring. The hinge drilling jig comes with a wrench to loosen the screw to adjust.

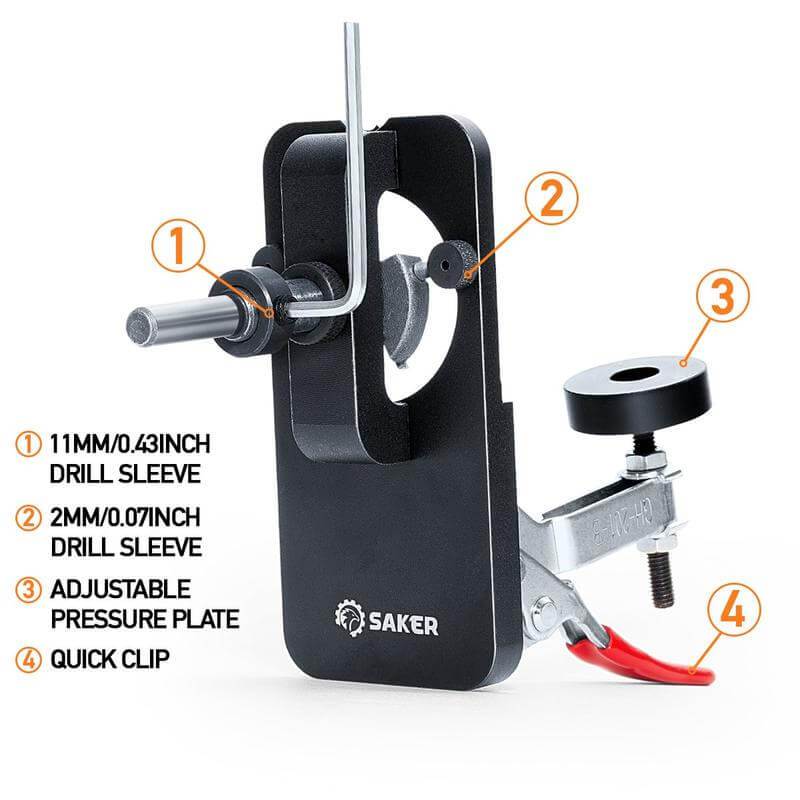

2. Adjust the fixed size of the black pressing block of the quick clamp (note: the tool can adjust the fixed board size to 15-25mm).

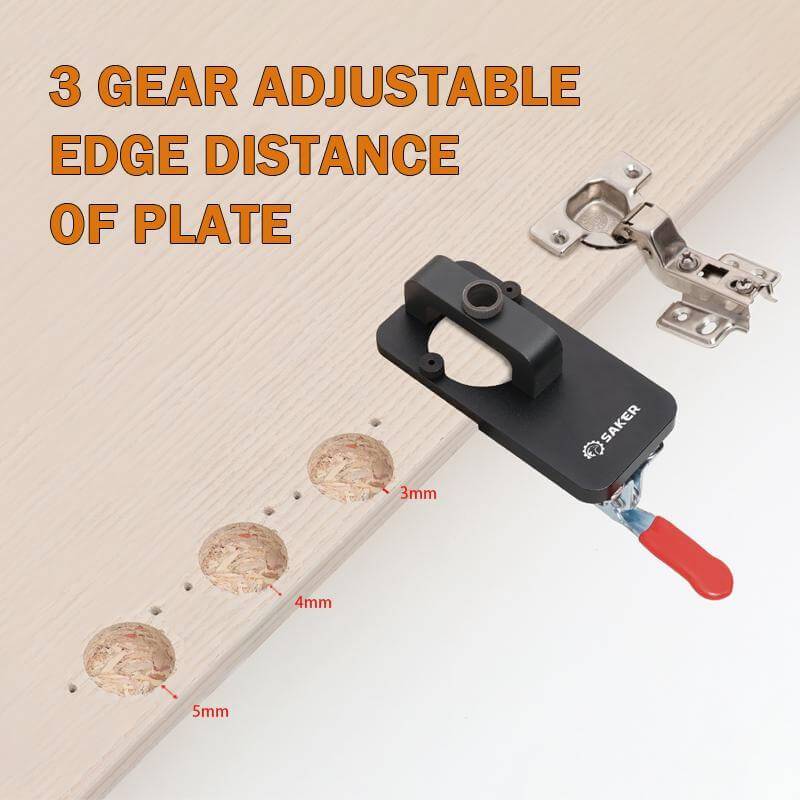

3. 3 gear adjustable edge distance of plate. Use margin block adjustment. The distance from the 35mm hole to the edge is 3~5mm (the distance can be adjusted), which is suitable for most common hinges.

4. Move the hole punch to the board marking and punching position, and lock the quick clamp.

5. Fasten the handle of the hole opener with the electric drill, press down the hole at a constant speed to a depth of 12-13mm, and then drill 2mm screw holes on the left and right sides.

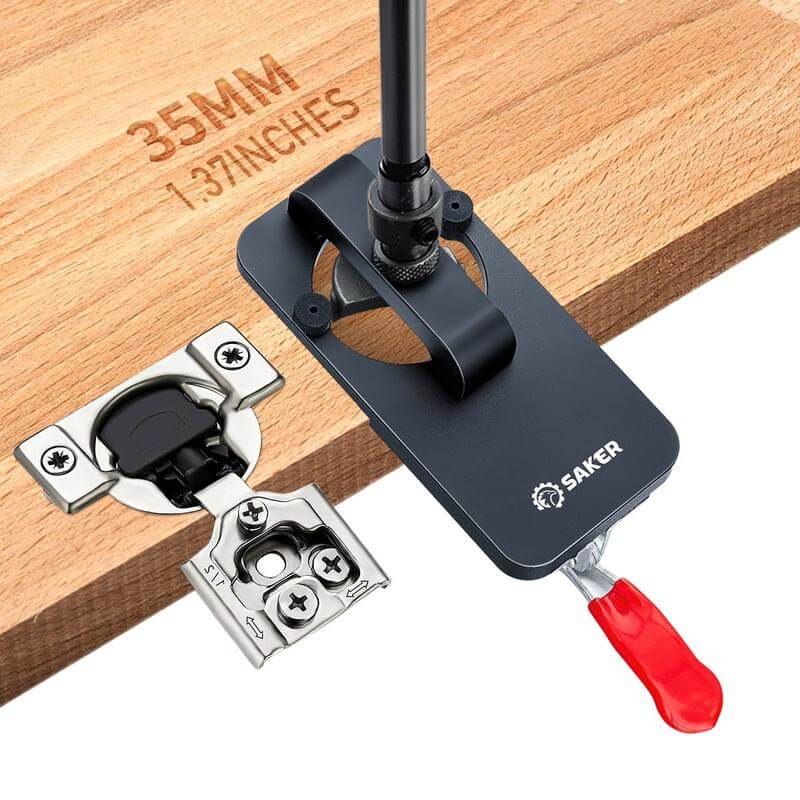

6. Install the 35mm hinge.

SPECIFICATIONS

• Material: Aluminum alloy
• Colour: Black
• Size: 4.72*4.72*2.36inch/120*120*60mm
• Weight: 1.34lbs

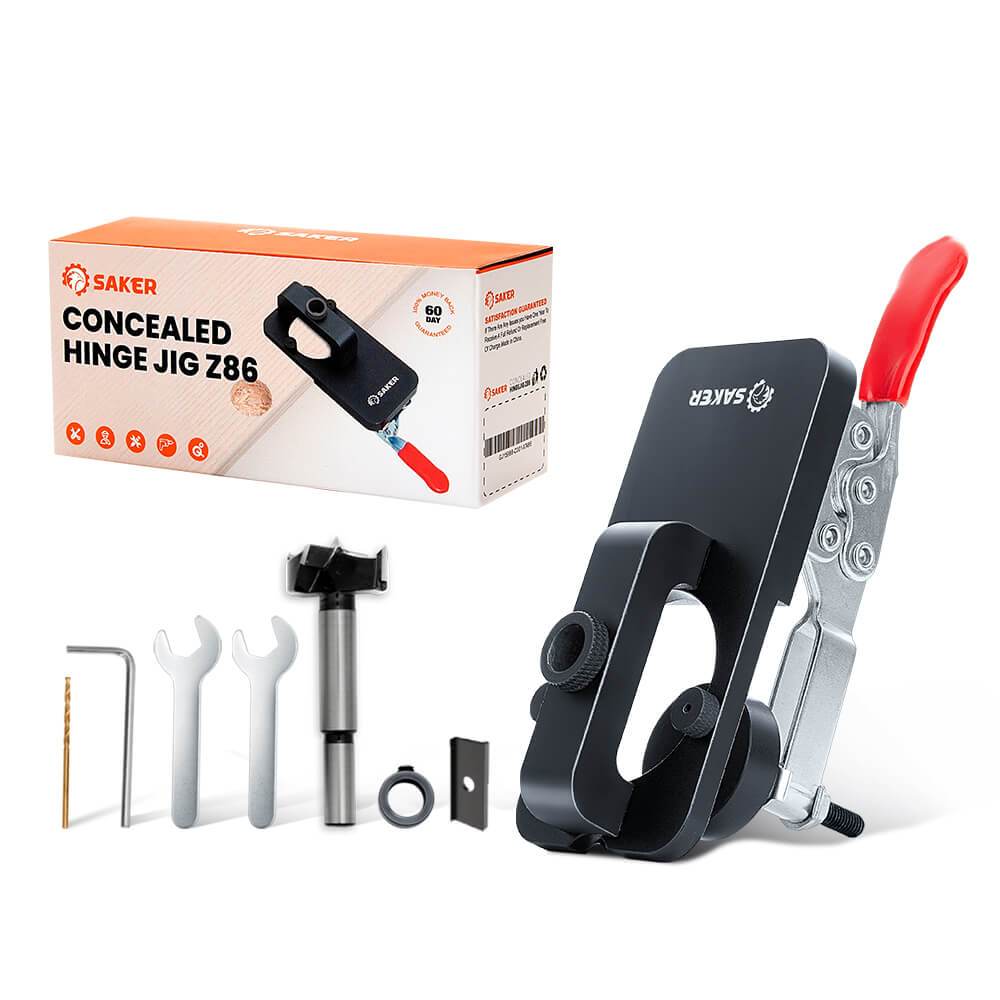

PACKAGE INCLUDES

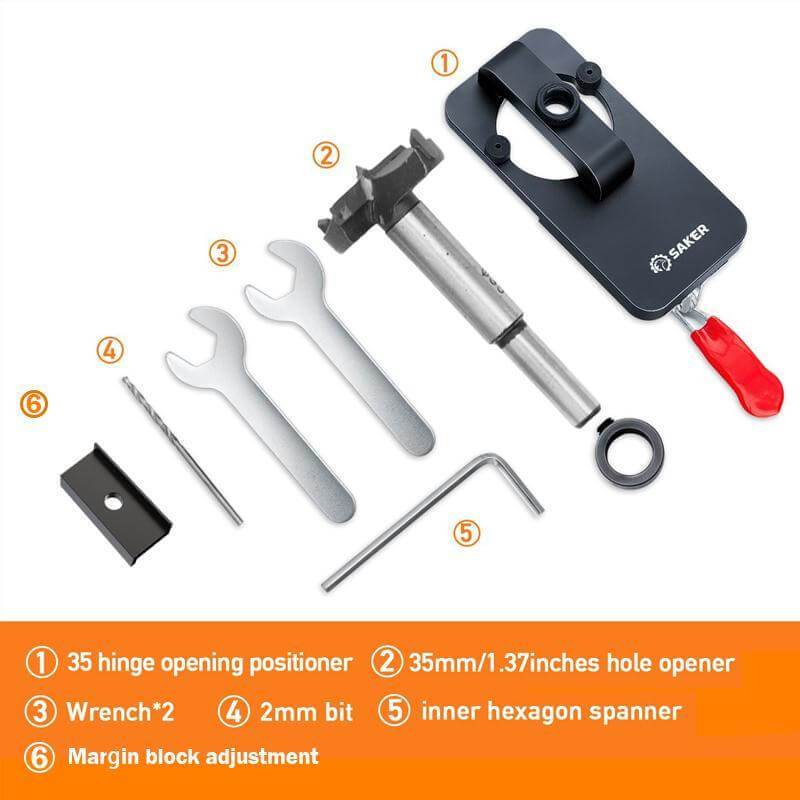

• 1*Saker Concealed Hinge Jig Z86 Include:

  1*hinge punch locator body;

  1*35mm hole opener(with limit ring);

  2*spanner;

  1*2mm drill bit;

  1*hexagon wrench;

  1*margin block adjustment
